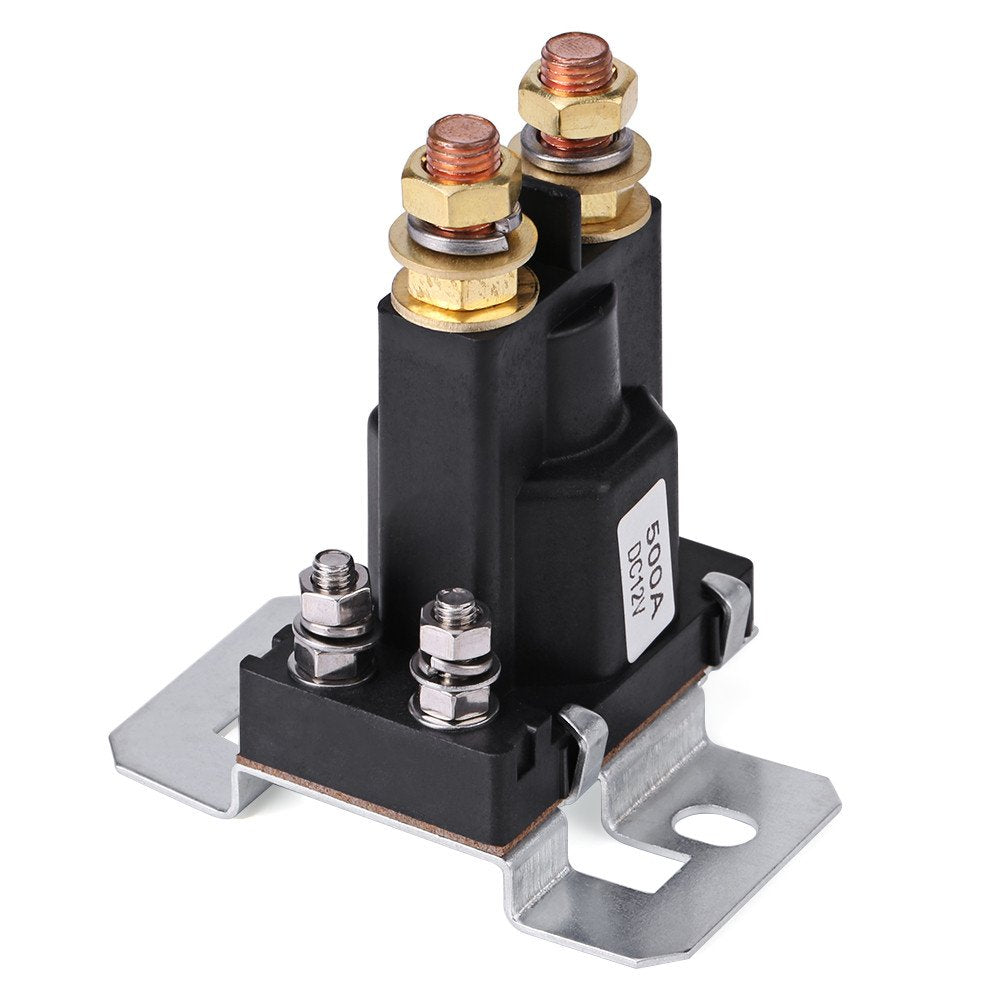

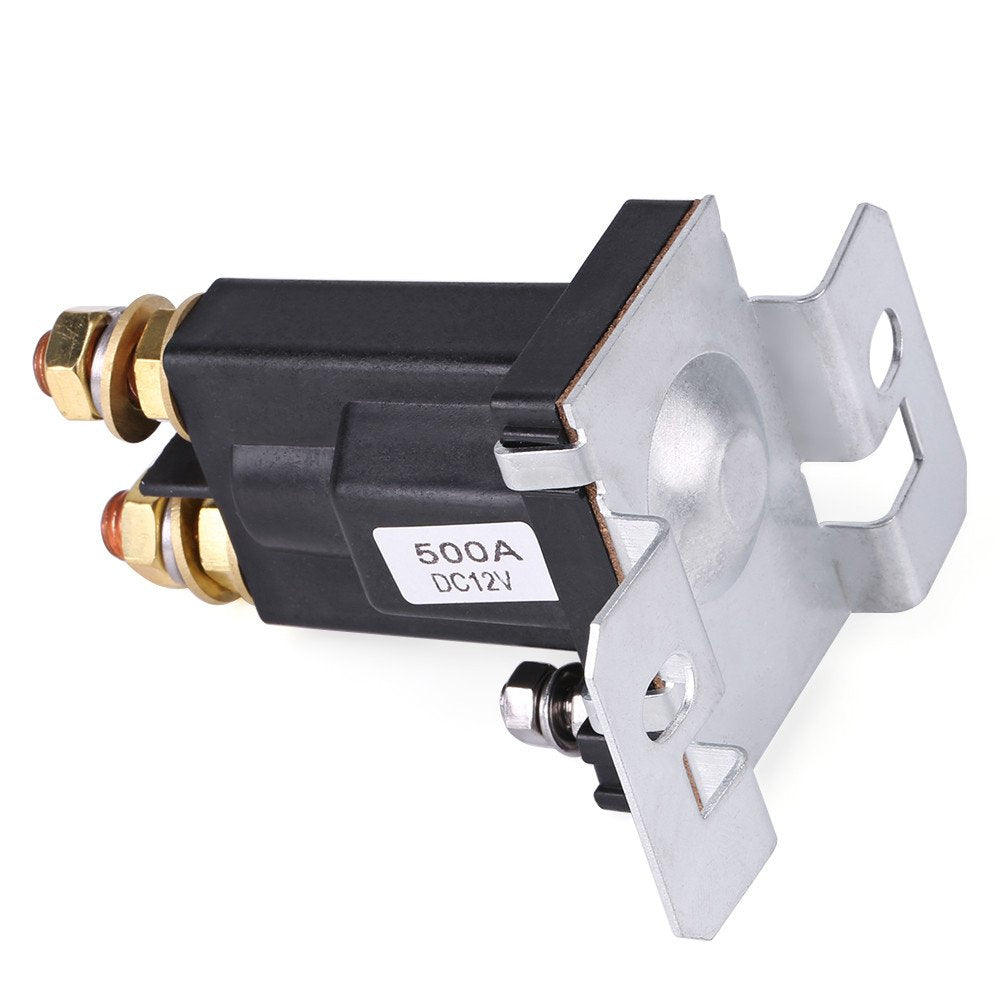

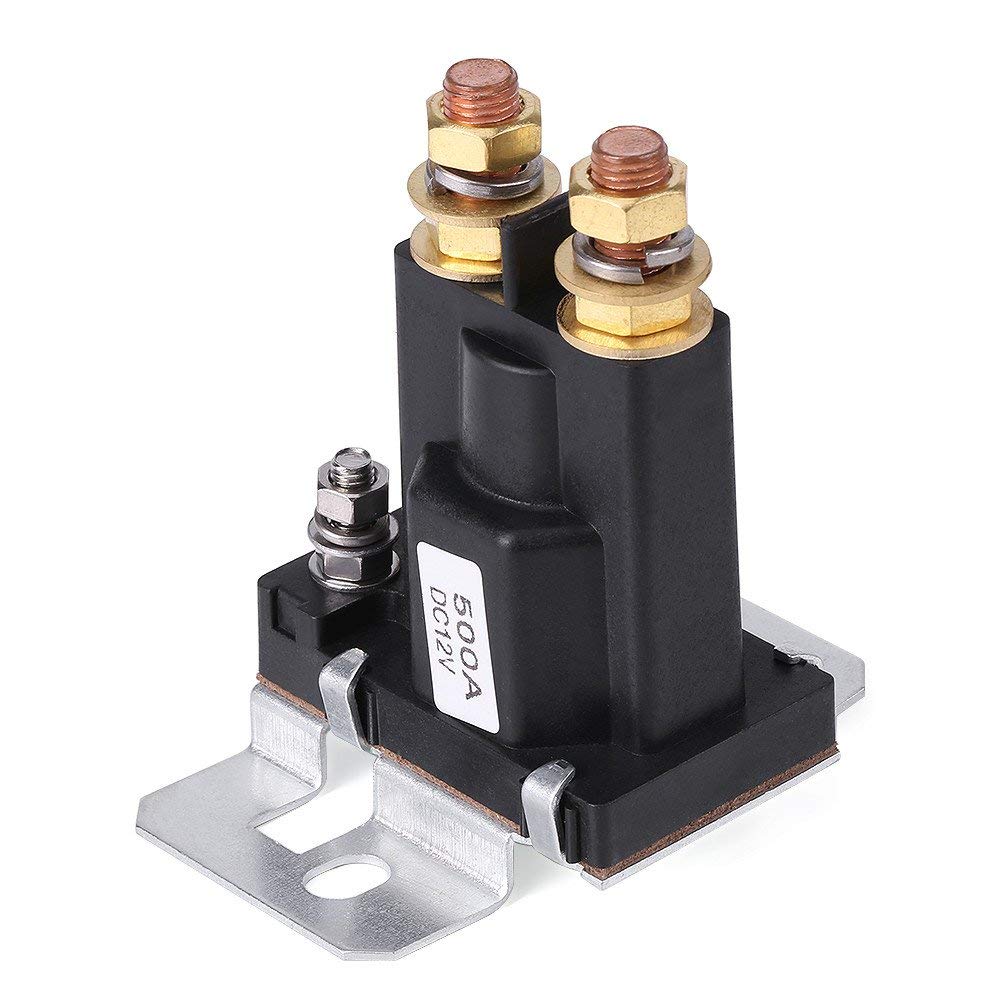

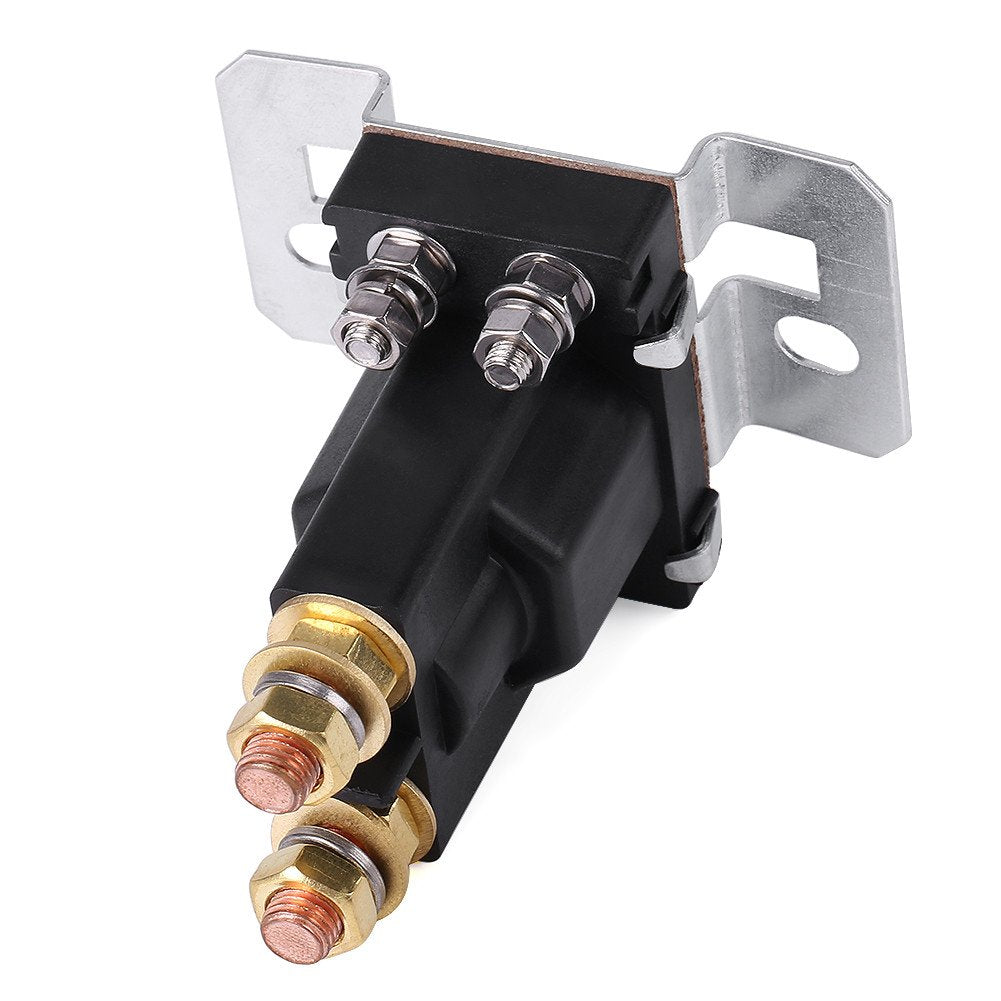

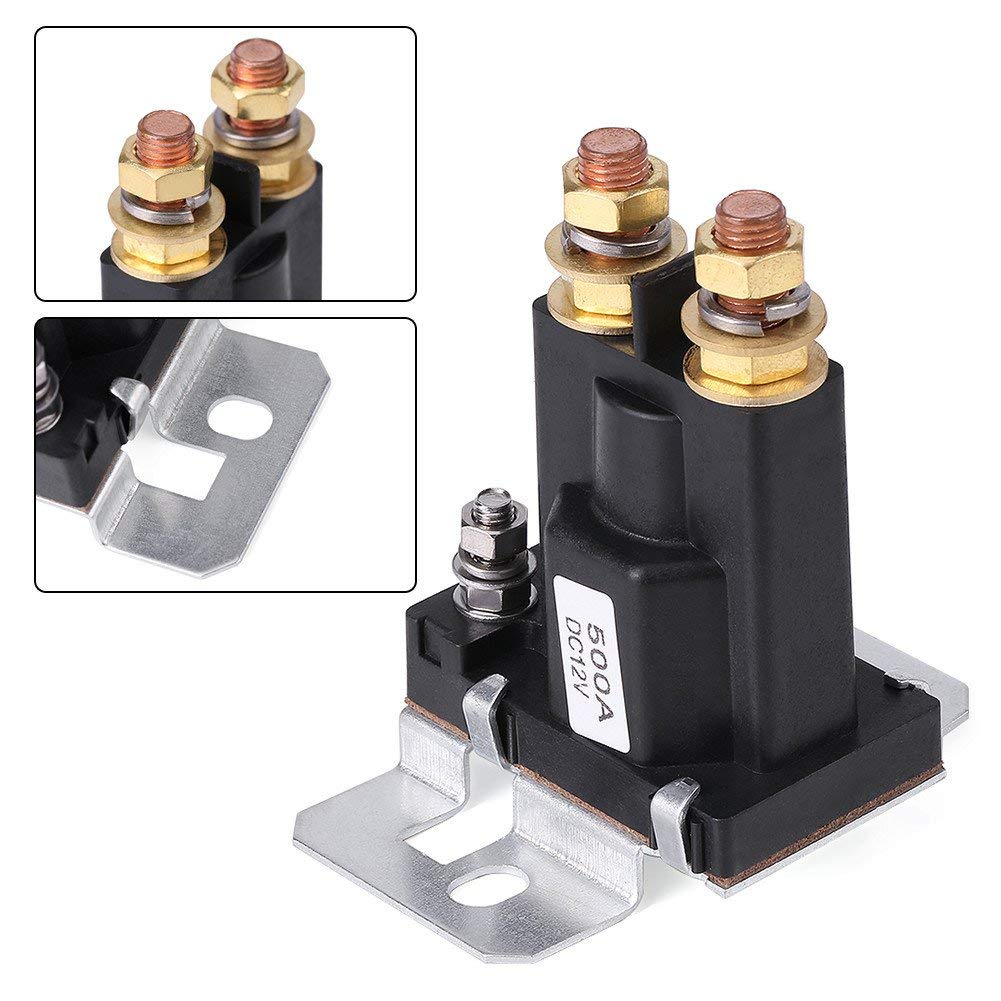

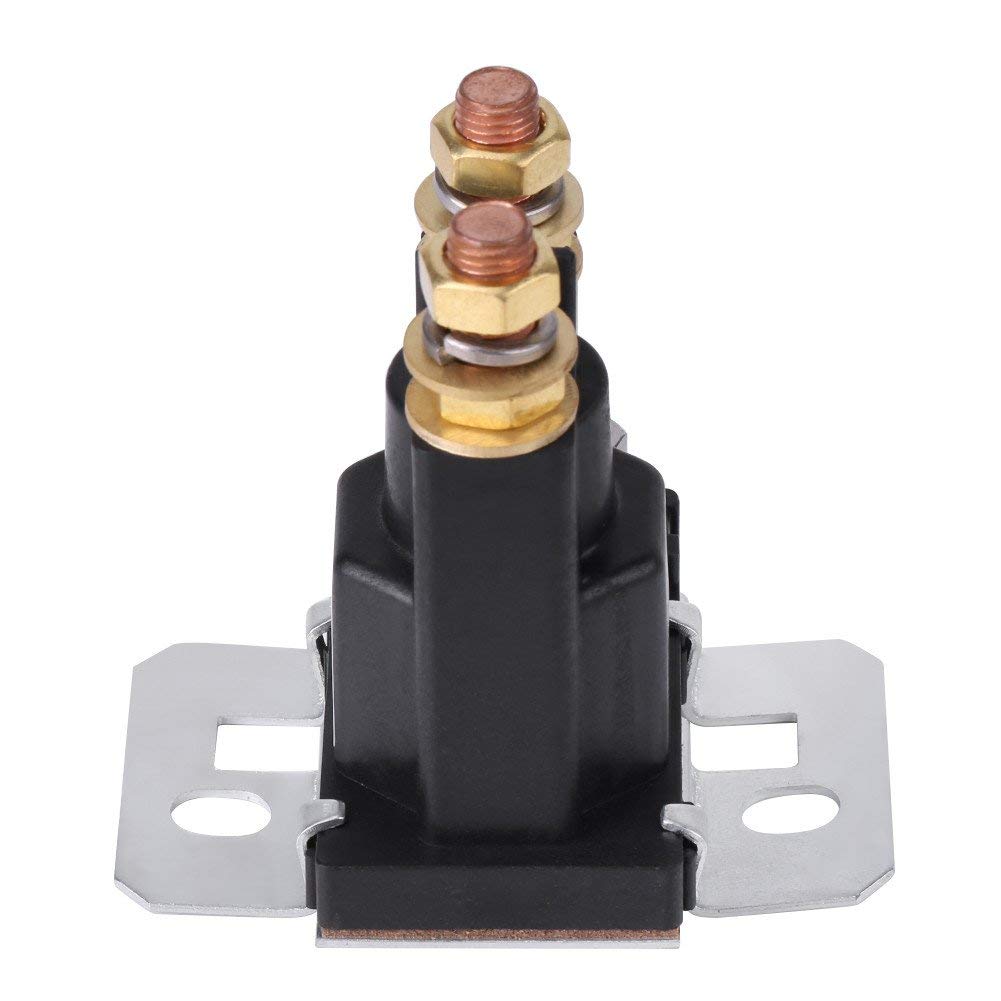

Pack of 2 12V 500A Solenoid Relay 4 Pin SPST F7242
Pack of 2 12V 500A Solenoid Relay 4 Pin SPST F7242
It help extend battery life
Universal 12V applications
Prevents primary battery discharge
Made of water resistant black phenolic plastic
The main function of this product is to switch on, it can be used alone, it can be also connected to control to use
Prevents primary battery discharge. Water resistant black phenolic plastic;

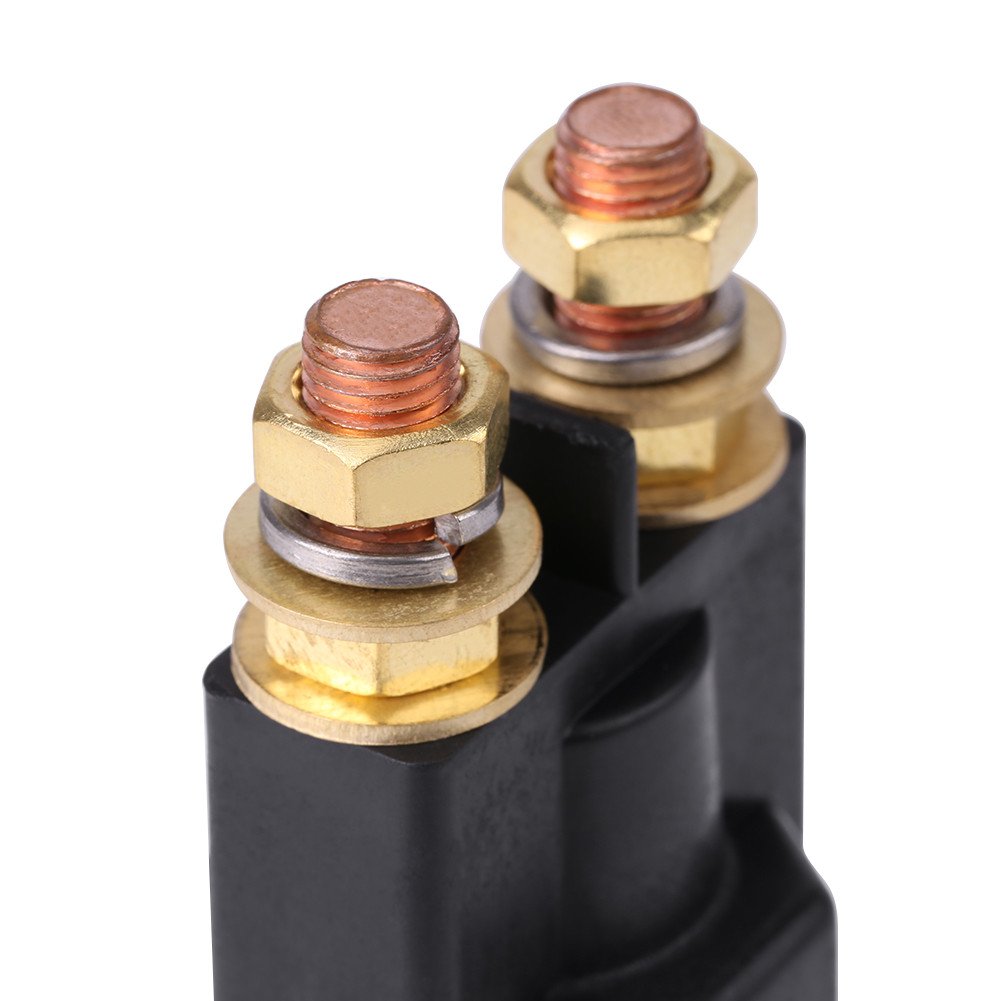

This Car relay with Red copper binding post: ensuring heavy current can be transited safely; Rated voltage 12VDC, maximum instantaneous through current 500A. Work long times maximum 200A;High quality: ensuring the maximum electric current can be transferred, for Multi-battery system Forklift Engineering Automotive
Specifications:
Protective features: sealing type Coil power: 12V DC Weight: 235g
Contact material: AgSn0_27In_20_33 Contact form: 1H(1A) Contact Ratings: 500A
Contact Resistance: 100mMax at 6VDC 1 A
Life Expectancy Electrical：100,000 Operations(at 30 Operations/minute)
Life Expectancy Mechanic： 10,000,000 Operations
COIL SPECIFICATION
Coil Resistance：(16W) 9Ω Max Operate Voltage(VDC): 8
Mix Release Voltage (VDC): 1.2 Max Applicable Voltage (VDC): 14
Temperature Range： -30~80℃ Vibration Resistance：10-55Hz, 1.5mm
Shock Resistance：
Operations Extremes： 50g Damage Limits： 100g
Humidity：40-85% Insulation Resistance： 100mΩ min at 500vdc
Safety Standard：
Dielectric Strength Between Open Contacts： 2000VAC(for 1 minuter/s)
Between Contacts and coil： 1500VAC(for 1 minuter/s)
Operate Time： 50ms Release Time： 50ms
Package Included:
1 x Heavy current relay
